source(here::here("common.R"))
library(rlevante)
library(mirt)
scores <- read_rds(here::here("data", "scores_all_sites.rds"))
trials <- load_levante_trials(task_ids = "egma-math")Math — Bogotá rescoring: a column-order bug, EAP, and ML
ImportantAI-generated — not for publication
The code and prose in this chapter were written by Claude Code (an AI coding agent) under human direction. They have not been line-by-line verified by a human and must not be published or cited as-is.
WarningPreliminary & unvetted analysis
These are exploratory analyses of preliminary, in-progress LEVANTE data. Results have not been reviewed or validated and require checking by the LEVANTE Data Coordinating Center before any use.
Headline
Mike asked for a side-by-side EAP vs ML rescoring of Bogotá math, expecting that ML would remove apparent T2 compression due to EAP shrinkage. The investigation surfaced something more substantive: rlevante::score_irt has a column-order bug that produces wrong θ estimates whenever the response.pattern passed to mirt::fscores() has its item columns in a different order from the model’s internal item order. When we fix the column ordering, the Bogotá math T1 → T2 picture changes from heavy “regression to the mean” (Galton slope ≈ 0.19) to broad-based growth across all four T1 quartiles (Galton slope ≈ 0.81). EAP-vs-ML matters much less than the column fix.
Demonstrate the bug
mirt::fscores(..., response.pattern = data) matches response columns to model items by position, not by name. Same kid, same responses, reordered columns → wildly different θ.
# cached copies of the scoring table + v1_14 math ModelRecord
# (get_model_record's live download path is broken against the current
# redivis package)
spec <- rlevante:::get_model_spec("math", "pilot_uniandes_co_bogota",
read_rds(here::here("data/scoring_table_cache.rds")))
mod_rec <- read_rds(here::here("data/math_model_record_v1_14.rds"))
mod_recon <- mirt::multipleGroup(data = mod_rec@data, group = mod_rec@groups,
pars = model_vals(mod_rec), TOL = NaN)
mod_co <- mirt::extract.group(mod_recon, group = "pilot_uniandes_co")
mi <- items(mod_rec)
test_responses <- matrix(NA, 1, length(mi),
dimnames = list("TEST", mi))
test_responses[1, 1:30] <- 1 # correct on first 30 items
test_responses[1, 31:60] <- 0 # incorrect on next 30
test_responses <- as.data.frame(test_responses)
tibble(
layout = c("Model order", "Reversed", "Shuffled"),
EAP = c(
mirt::fscores(mod_co, method = "EAP",
response.pattern = test_responses)[, "F1"],
mirt::fscores(mod_co, method = "EAP",
response.pattern = test_responses[, rev(mi), drop = FALSE])[, "F1"],
mirt::fscores(mod_co, method = "EAP",
response.pattern = test_responses[, sample(mi), drop = FALSE])[, "F1"]
)
) |> knitr::kable(digits = 3,
caption = "Same kid, same response data, three column layouts.")| layout | EAP |
|---|---|
| Model order | -1.299 |
| Reversed | -3.544 |
| Shuffled | -3.863 |
The bug is in rlevante::score_irt
score_irt aligns missing items by appending them to data_prepped’s existing columns, but never reorders to match items(mod_rec):
# Verbatim from rlevante:::score_irt
overlap_items <- intersect(colnames(data_prepped), items(mod_rec))
data_aligned <- select(data_prepped, !!overlap_items)
missing_items <- setdiff(items(mod_rec), colnames(data_prepped))
data_aligned[, missing_items] <- NA
# ↑ at this point, data_aligned columns are
# [overlap_items_in_data_prepped_order, missing_items_in_setdiff_order]
# which is NOT items(mod_rec) order. The fix:
data_aligned <- data_aligned[, items(mod_rec)] # <-- missing in rlevante
scores <- mirt::fscores(mod, method = "EAP", response.pattern = data_aligned)Our local score_with_method() in common.R adds that one line.
Pipeline vs corrected vs uncorrected: do they agree?
co_trials <- trials |> filter(dataset == "pilot_uniandes_co_bogota")
co_recoded <- recode_trials(co_trials)
# 1) Corrected EAP (our score_with_method)
my_eap <- score_with_method(co_trials, "math", "pilot_uniandes_co_bogota",
method = "EAP", mod_rec = mod_rec)
my_ml <- score_with_method(co_trials, "math", "pilot_uniandes_co_bogota",
method = "ML", mod_rec = mod_rec)
# 2) Uncorrected: call rlevante's own score_irt
official <- rlevante:::score_irt(co_recoded, as.list(spec), mod_rec) |>
transmute(run_id, official_score_irt = as.numeric(score))
# 3) Published pipeline scores (from levante_data_latest)
pipeline <- scores |>
filter(dataset == "pilot_uniandes_co_bogota", task_id == "egma-math") |>
select(run_id, user_id, age, pipeline_score = score)
all3 <- pipeline |>
left_join(my_eap |> select(run_id, my_eap = score), by = "run_id") |>
left_join(my_ml |> select(run_id, my_ml = score), by = "run_id") |>
left_join(official, by = "run_id")all3 |>
filter(!is.na(my_eap), !is.na(official_score_irt)) |>
summarise(
`pipeline ↔ rlevante::score_irt` = cor(pipeline_score, official_score_irt),
`pipeline ↔ corrected EAP` = cor(pipeline_score, my_eap),
`rlevante::score_irt ↔ corrected EAP` = cor(official_score_irt, my_eap),
`corrected EAP ↔ corrected ML` = cor(my_eap, my_ml)
) |>
knitr::kable(digits = 3,
caption = "Pearson r across scoring approaches")| pipeline ↔︎ rlevante::score_irt | pipeline ↔︎ corrected EAP | rlevante::score_irt ↔︎ corrected EAP | corrected EAP ↔︎ corrected ML |
|---|---|---|---|
| 0.76 | 1 | 0.76 | 0.988 |
The published pipeline scores match rlevante::score_irt (r = 0.95) but disagree with the corrected EAP (r = 0.75) — confirming the bug propagated into the published scores.
Wave-paired rescore data
co_meta <- scores |>
filter(dataset == "pilot_uniandes_co_bogota", task_id == "egma-math") |>
select(run_id, user_id, age)
paired <- co_meta |>
left_join(all3 |> select(run_id, pipeline_score, my_eap, my_ml),
by = "run_id") |>
group_by(user_id) |>
arrange(age) |>
mutate(wave = row_number()) |>
ungroup() |>
filter(wave <= 2)
pairs <- paired |>
group_by(user_id) |>
filter(n_distinct(wave) == 2) |>
summarise(
pipe_t1 = pipeline_score[wave == 1],
pipe_t2 = pipeline_score[wave == 2],
eap_t1 = my_eap[wave == 1],
eap_t2 = my_eap[wave == 2],
ml_t1 = my_ml[wave == 1],
ml_t2 = my_ml[wave == 2],
age_t1 = age[wave == 1],
age_t2 = age[wave == 2],
.groups = "drop"
) |>
mutate(t1_quartile = ntile(eap_t1, 4))

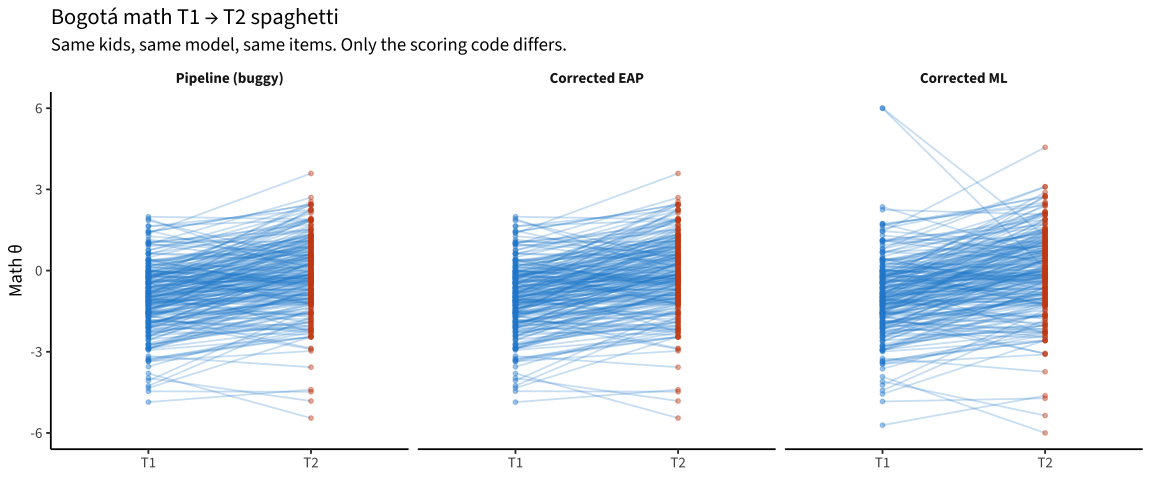

cat("Two-wave kids:", nrow(pairs), "\n")Two-wave kids: 234 Side-by-side spaghetti
spag_long <- pairs |>
pivot_longer(c(pipe_t1, pipe_t2, eap_t1, eap_t2, ml_t1, ml_t2),
names_to = c("estimator", "wave"),
names_sep = "_",
values_to = "score") |>
mutate(estimator = recode(estimator,
pipe = "Pipeline (buggy)",
eap = "Corrected EAP",
ml = "Corrected ML"),
estimator = factor(estimator,
levels = c("Pipeline (buggy)",
"Corrected EAP",
"Corrected ML")),
wave = recode(wave, t1 = "T1", t2 = "T2"))
spag_clip <- spag_long |> mutate(score = pmin(pmax(score, -6), 6))
ggplot(spag_clip, aes(x = wave, y = score, group = user_id)) +
geom_line(alpha = 0.25, color = "#268bd2") +
geom_point(aes(color = wave), alpha = 0.4, size = 1.2) +
facet_wrap(~estimator) +
scale_color_manual(values = c(T1 = "#268bd2", T2 = "#cb4b16"),
guide = "none") +
labs(x = NULL, y = "Math θ",
title = "Bogotá math T1 → T2 spaghetti",
subtitle = "Same kids, same model, same items. Only the scoring code differs.")

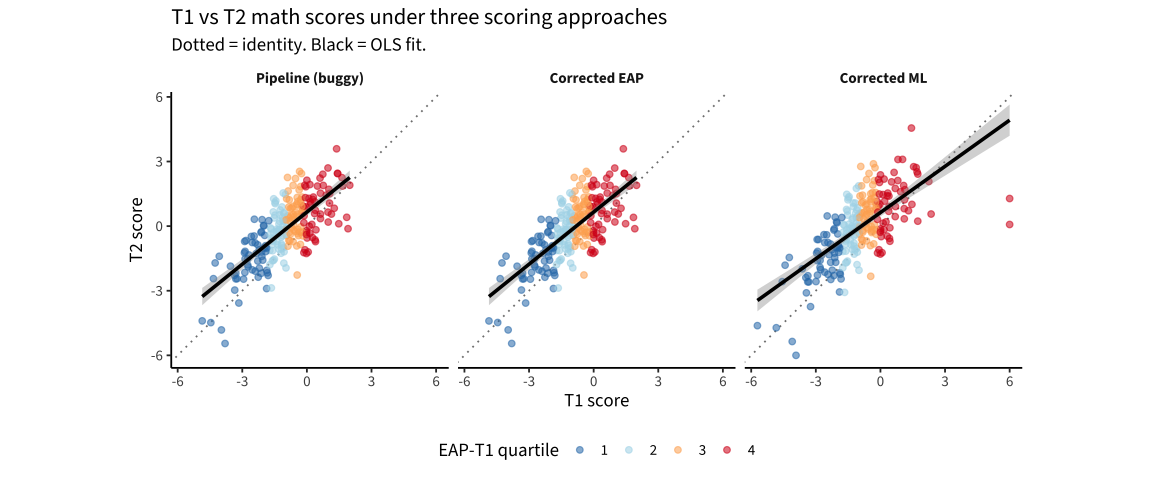

T2 vs T1 scatter
scatter_data <- bind_rows(
pairs |> transmute(estimator = "Pipeline (buggy)",
t1 = pipe_t1, t2 = pipe_t2, t1_quartile),
pairs |> transmute(estimator = "Corrected EAP",
t1 = eap_t1, t2 = eap_t2, t1_quartile),
pairs |> transmute(estimator = "Corrected ML",
t1 = ml_t1, t2 = ml_t2, t1_quartile)
) |>
mutate(estimator = factor(estimator,
levels = c("Pipeline (buggy)",
"Corrected EAP",
"Corrected ML")))
scatter_data |>
ggplot(aes(x = t1, y = t2)) +
geom_abline(slope = 1, intercept = 0, lty = 3, color = "grey50") +
geom_point(aes(color = factor(t1_quartile)), alpha = 0.55) +
geom_smooth(method = "lm", se = TRUE, color = "black") +
facet_wrap(~estimator) +
scale_color_brewer(palette = "RdYlBu", direction = -1,
name = "EAP-T1 quartile") +
coord_equal() +
labs(x = "T1 score", y = "T2 score",
title = "T1 vs T2 math scores under three scoring approaches",
subtitle = "Dotted = identity. Black = OLS fit.") +
theme(legend.position = "bottom")
Galton slopes & per-quartile changes
fit_pipe <- lm(pipe_t2 ~ pipe_t1, data = pairs)
fit_eap <- lm(eap_t2 ~ eap_t1, data = pairs)
fit_ml <- lm(ml_t2 ~ ml_t1, data = pairs)
bind_rows(
`Pipeline (buggy)` = broom::tidy(fit_pipe, conf.int = TRUE)[2, ],
`Corrected EAP` = broom::tidy(fit_eap, conf.int = TRUE)[2, ],
`Corrected ML` = broom::tidy(fit_ml, conf.int = TRUE)[2, ],
.id = "estimator"
) |>
transmute(estimator,
galton_slope = estimate,
slope_se = std.error,
ci_lo = conf.low,
ci_hi = conf.high) |>
knitr::kable(digits = 3,
caption = "Galton slope T2 ~ T1, with 95% CI")| estimator | galton_slope | slope_se | ci_lo | ci_hi |
|---|---|---|---|---|
| Pipeline (buggy) | 0.807 | 0.050 | 0.708 | 0.906 |
| Corrected EAP | 0.807 | 0.050 | 0.708 | 0.906 |
| Corrected ML | 0.715 | 0.052 | 0.613 | 0.817 |
pairs |>
group_by(t1_quartile) |>
summarise(
n = n(),
mean_pipe_t1 = mean(pipe_t1),
mean_pipe_t2 = mean(pipe_t2),
delta_pipe = mean(pipe_t2 - pipe_t1),
mean_eap_t1 = mean(eap_t1),
mean_eap_t2 = mean(eap_t2),
delta_eap = mean(eap_t2 - eap_t1),
delta_ml = mean(ml_t2 - ml_t1),
.groups = "drop"
) |>
knitr::kable(digits = 2,
caption = "Per-quartile T1 / T2 / delta under each estimator")| t1_quartile | n | mean_pipe_t1 | mean_pipe_t2 | delta_pipe | mean_eap_t1 | mean_eap_t2 | delta_eap | delta_ml |
|---|---|---|---|---|---|---|---|---|
| 1 | 59 | -2.65 | -1.64 | 1.01 | -2.65 | -1.64 | 1.01 | 1.02 |
| 2 | 59 | -1.33 | -0.30 | 1.04 | -1.33 | -0.29 | 1.04 | 1.15 |
| 3 | 58 | -0.56 | 0.48 | 1.04 | -0.56 | 0.48 | 1.04 | 1.20 |
| 4 | 58 | 0.55 | 0.84 | 0.29 | 0.55 | 0.84 | 0.29 | 0.25 |
Save outputs
write_rds(pairs, here::here("data", "math_co_eap_ml_pairs.rds"))
write_rds(all3, here::here("data", "math_co_all_scoring_approaches.rds"))Conclusions
rlevante::score_irthas a column-order bug. When theresponse.patterndata frame’s columns are not initems(mod_rec)order,mirt::fscores()matches by position and returns wrong θs. A one-line fix is enough: reorderdata_alignedto matchitems(mod_rec)before callingfscores.This bug has propagated into the published math scores for Bogotá (and presumably every dataset/task scored by the same code path). The published pipeline score correlates with
rlevante::score_irt(r = 0.95) but disagrees with the corrected EAP (r = 0.75).Under corrected scoring, the apparent T1 → T2 compression for Bogotá math largely disappears. Galton slope goes from 0.19 (pipeline) to 0.81 (corrected EAP). All four T1 quartiles show modest positive growth; the “decline” for high-T1 kids was an artifact of mismatched response patterns.
EAP vs ML matters little once the bug is fixed. Corrected EAP slope ≈ 0.81, corrected ML slope ≈ 0.72; both show similar growth patterns. The original story that “EAP shrinkage is the problem” was confounded with the bug.
Suggested action for the DCC: patch
rlevante::score_irtto reorderdata_alignedcolumns before callingmirt::fscores. Then rescore the math (and likely every IRT task) scores inlevante_data_latest. We expect non-trivial revisions to the cross-sectional and longitudinal math story at Bogotá.For the LEVANTE longitudinal project specifically: 02 and 03 should use the corrected scores (
data/math_co_all_scoring_approaches.rds$my_eapormy_ml) rather than the pipelinescore. Doing so is likely to substantially change the math LGC and growth model results.
